HDM 635

Description

---

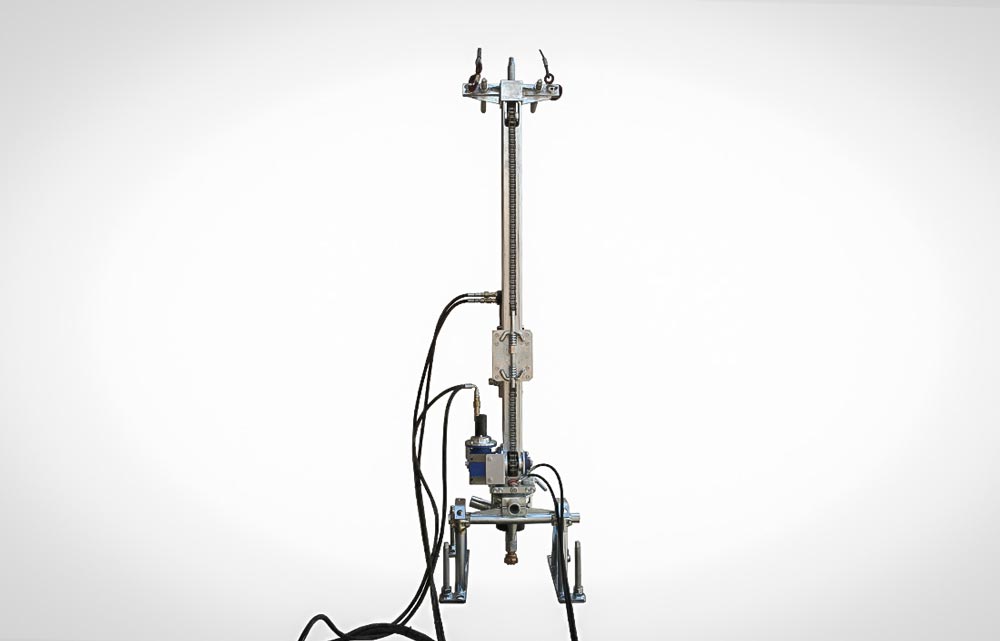

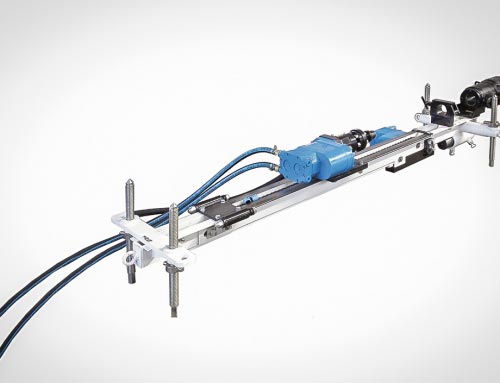

The HDM 635 drilling machine is designed to make the intersecting holes of 76 or 90 mm in diameter, where to pass the diamond wire in quarries of marble and granite.

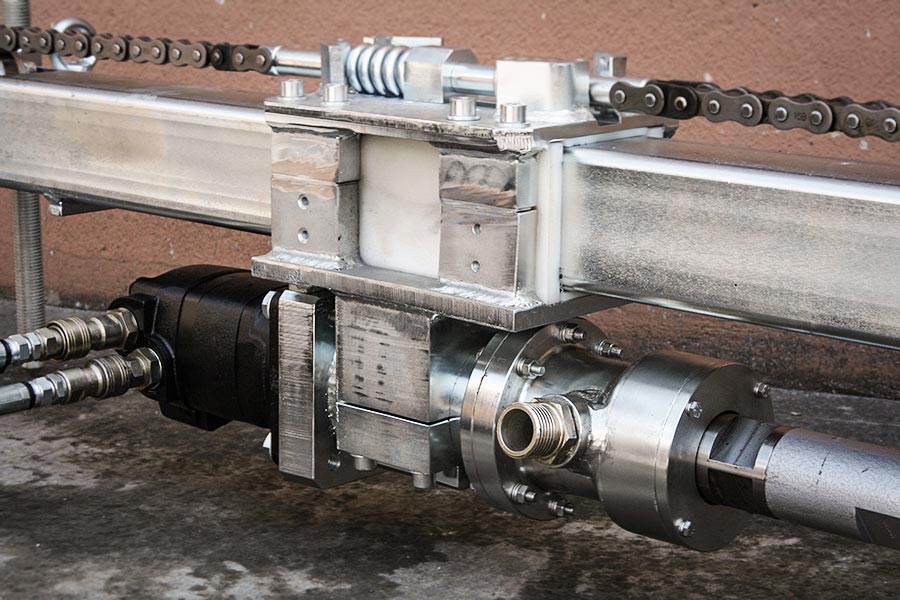

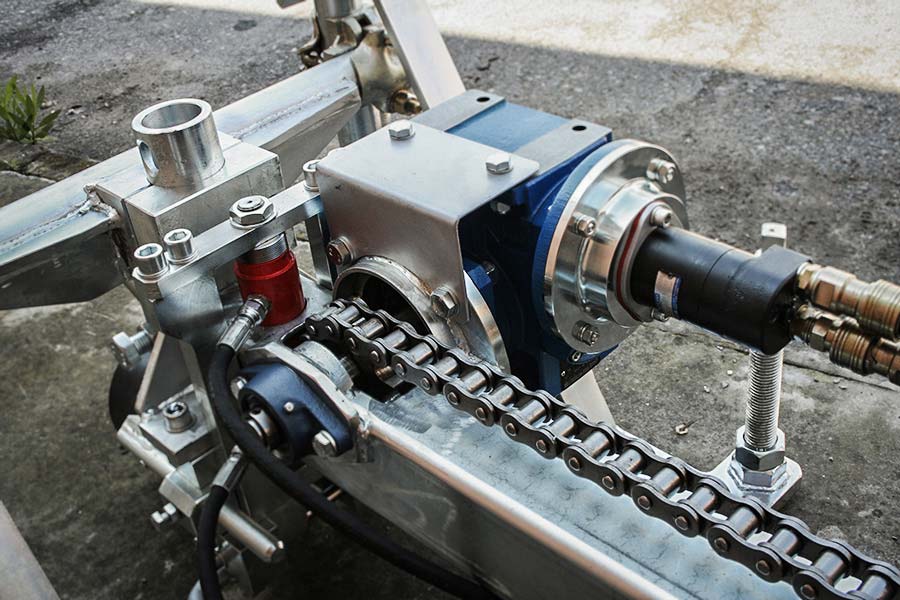

The drilling is made by a down-the-hole hammer. The rotation and the advancement movements of the drilling are made possible via hydraulic motors.
This machine can drill in vertical, horizontal, or inclined directions with an easy positioning operation.

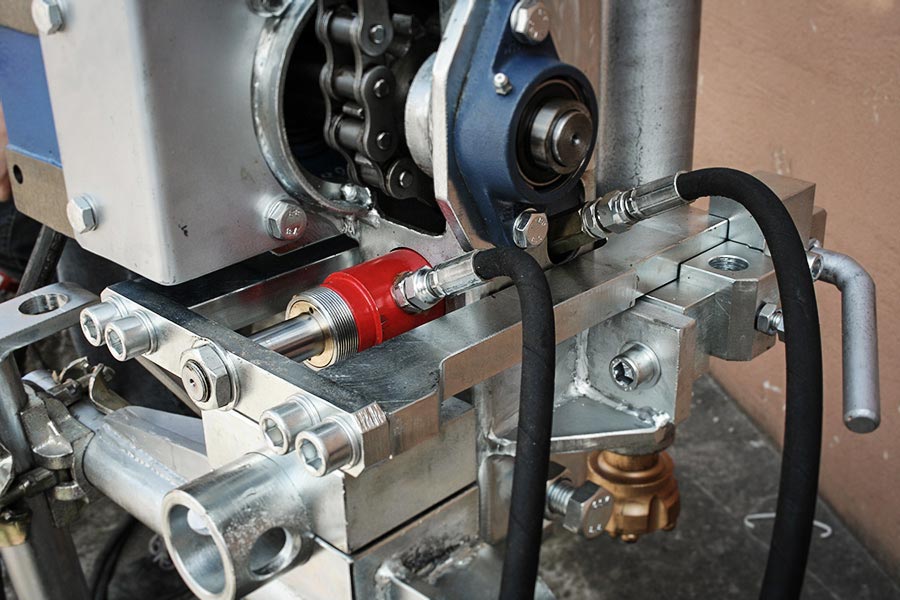

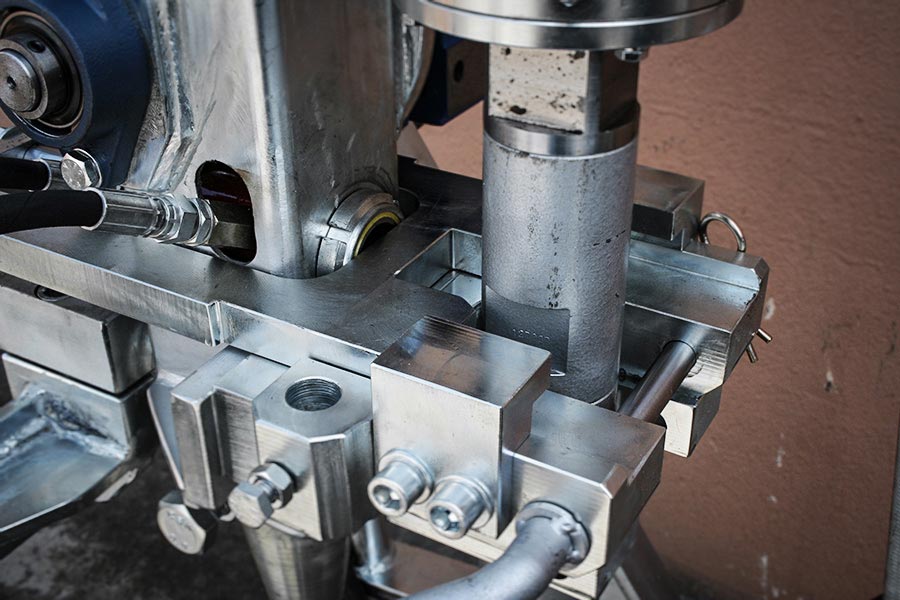

This machine is equipped with a special holding-blocking hydraulic vice for the drill tubes. The slide bar of the machine is designed to utilize either a 2” down-the-hole hammer, 76 mm diam. drill bit, and 62 mm diameter drill tubes or a 3” down-the-hole hammer, 90 mm diam. drill bit and with 76 mm diam. drill tubes.
The hydraulic unit, equipped with a 7.5 kw electric motor, is carried on a 4-wheel trolley the hydraulic unit includes also the air group for the feed of the downthe-hole hammer.

Technical features

Power supply

---

Electric motor of hydraulic unit	7.5 kW
Compressed air at	7 bar
2500 l /min with D-T-H hammer 2"
3500 l /min with D-T-H hammer 3"
Sizes of down-the-hole hammer	2" / 3"
Conical/spherical-mixed button drill bit diameter	Ø 76mm / Ø 90mm
Drill tubes diameter	Ø 62mm / Ø 76mm
Standard length of drill tube	1,00 m (1,50 upon request)
Hydraulic oil tank capacity	75 L
